High Pressure Swivel Air Spool

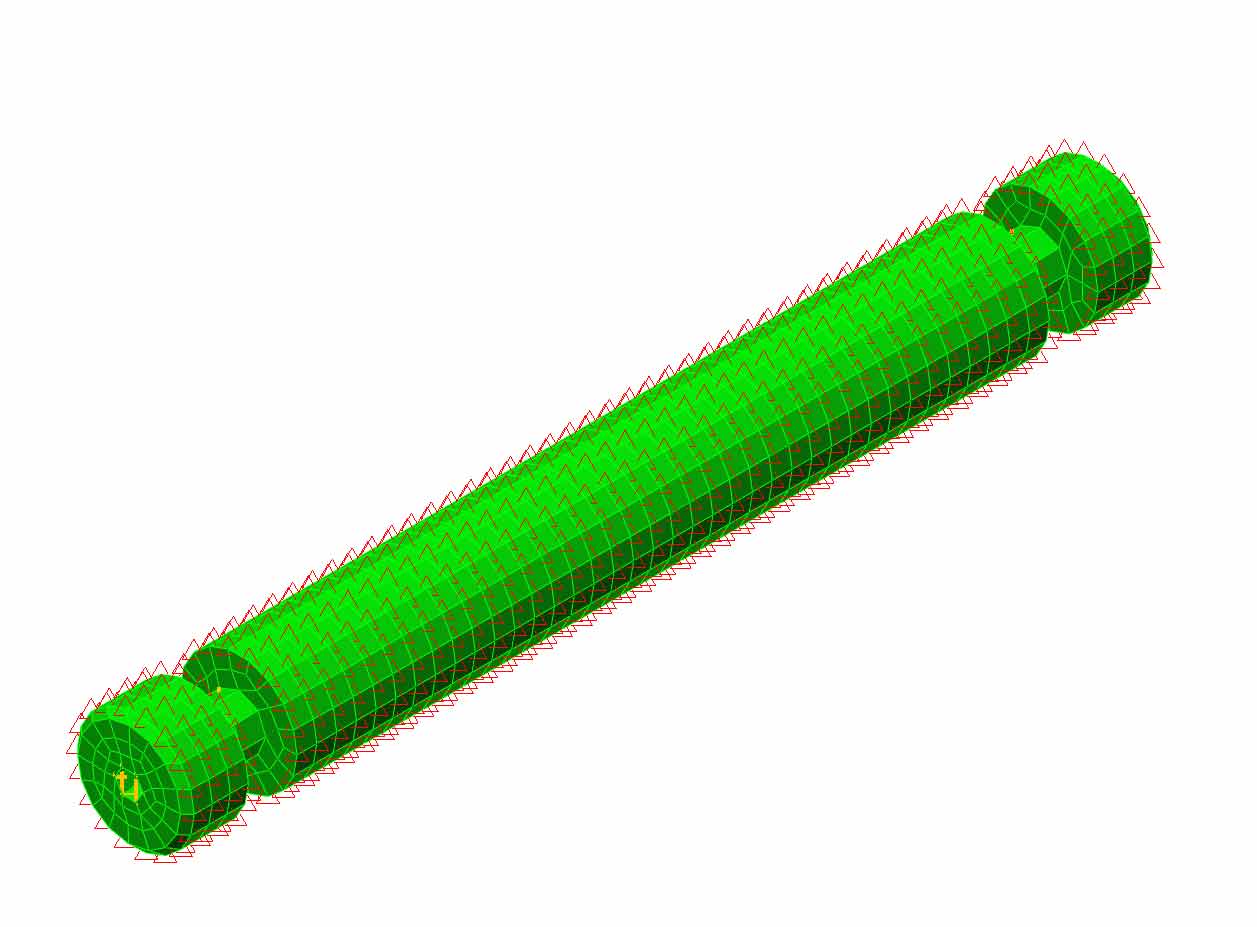

Inventor 3D solid model and Algor 3D FEA solid brick and tetrahedral element model with internal pressure loads, and external boundary conditions

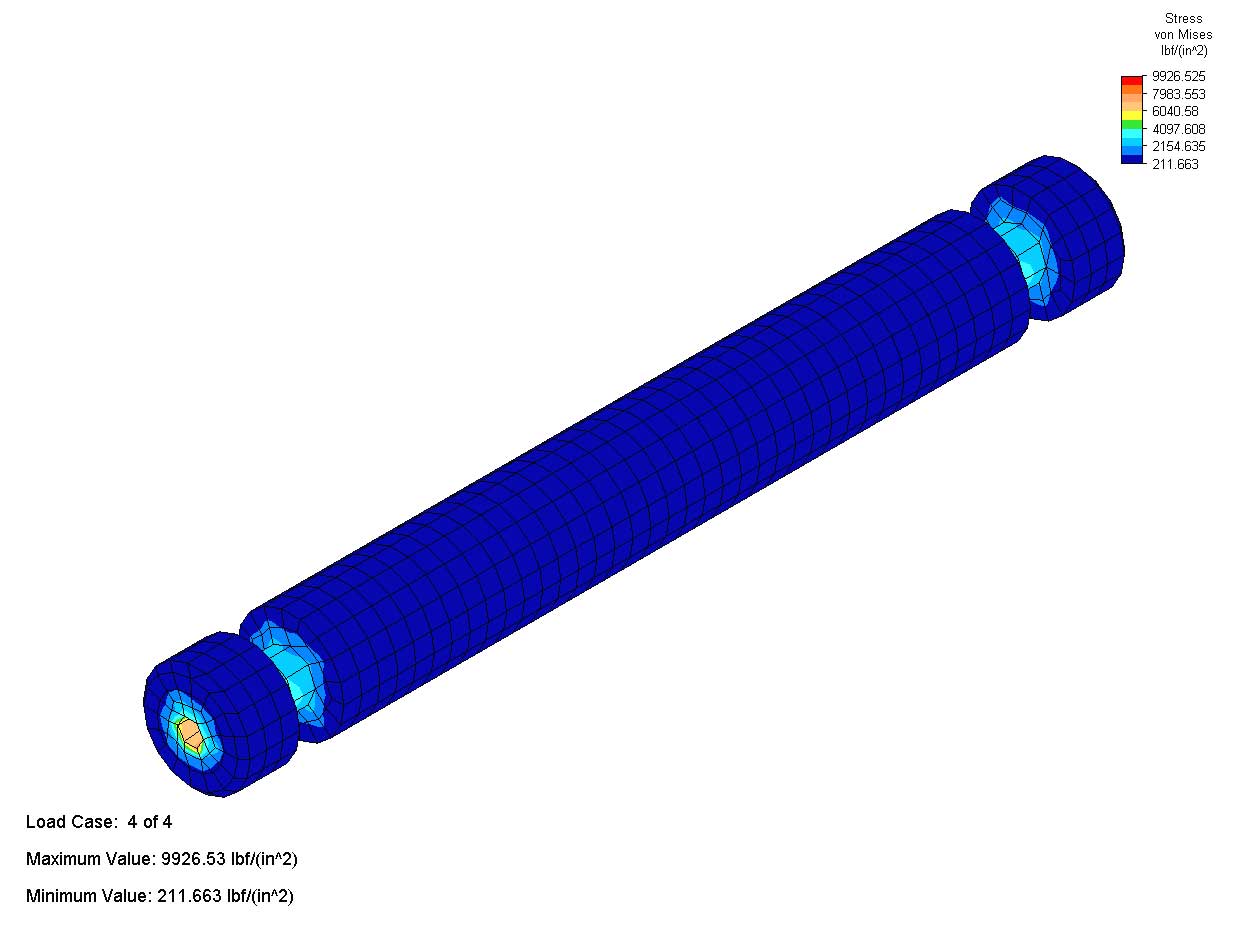

Pin displacement & von Mises stresses from uniform internal pressure

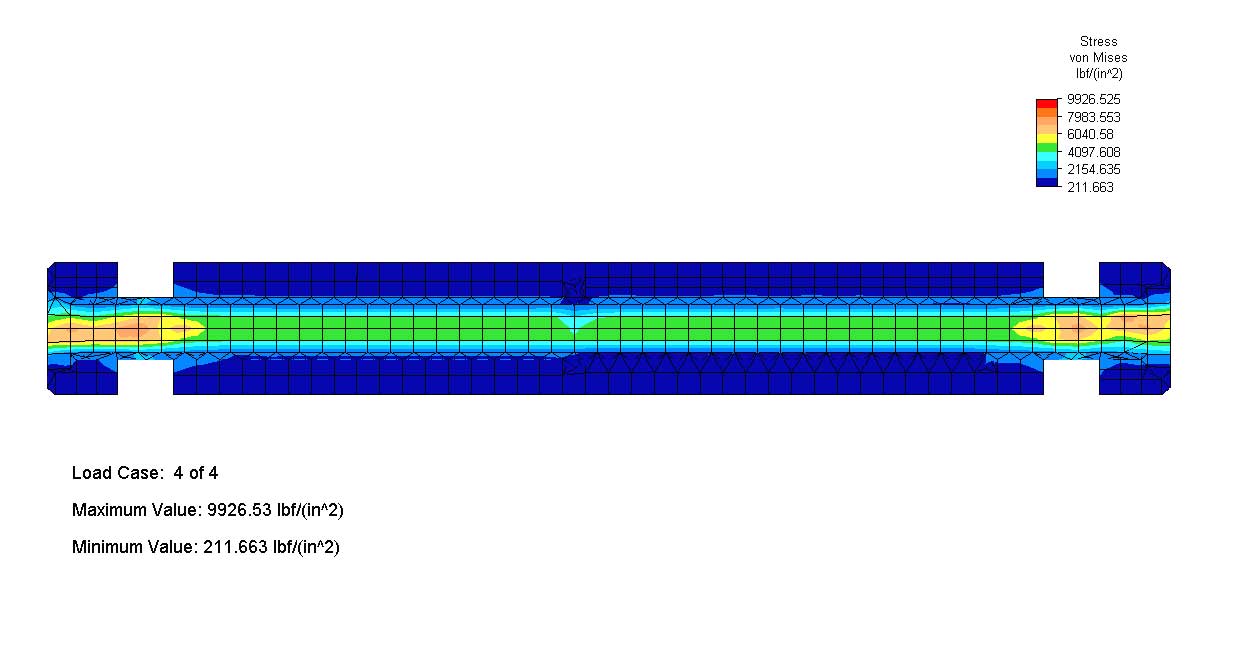

YZ slice through the pin showing von Mises stress distribution
